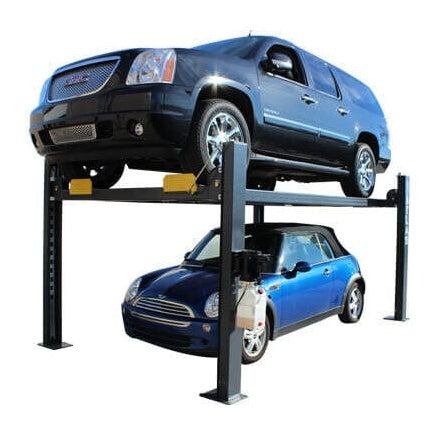

Deluxe 8,000 lb. Portable Hobbyist 4-Post Lift The Atlas 408SL super deluxe portable vehicle storage lift is designed for those car enthusiasts who demand the absolute best look and superior quality. The 408SL has all the great features of our Atlas Garage Pro Series 4 post hobbyist lifts, but incorporates many features found only on our Atlas commercial grade 4-post lifts. All columns incorporate two special bends which help to increase the column strength. These strategic bends also increase the surface area for the slide block to travel. Horizontal cables are hidden inside of the cross tubes. Professional grade wheel covers are used to eliminate almost all exposure of cables and the double lock system. The Atlas 408SL has more metal and weighs over 100 lbs. more than other hobbyist lifts based upon the same column and runway configuration. The Atlas 408SL is built to the same commercial lift standards as our Atlas 412 and Atlas 414 four post lifts, but also offers portability (Caster Kit included). If you are looking for a lift that stands out from all the other storage lifts sold in the USA, then take a good look at the Atlas 408SL. Many customers who purchased this lift also purchased the Atlas RJ35.
Features
- 8,000 lb. Capacity
- Free Standing/Portable Design
- Diamond Plated Runways
- Single point lock release
- Columns incorporate two special bends to increase column strength.
- Larger Column Size
- Double Lock Safety System
- Higher quality powder coating (steel gray color)
- Cables hidden in Columns & Cross Tubes
- Commercial Grade Wear Blocks
- Power Unit can be positioned at any corner
- Wider Access Between Runways
- Caster Kit With Polyurethane Wheels Included
- Steel Approach Ramps Included
- Steel Jack Tray Included
- Four Plastic Drip Trays Included
- Wheel Stops Included
- Anchor Bolts Optional (Sold Separately)
- 110volt Electric Operation PLUG NOT INCLUDED (Requires 30amp Breaker)
- Shipping Weight: 1,965 lbs.
- 2 yr Structural 2 yr Hydraulic Warranty Parts Only
SpecificationsAtlas 408SL Specifications
| Capacity |
8,000 lb. |
| Lifting Height To Top Of Runway |
73 1/4" (6' 1 1/4") (Not on Lock) |
| Clearance Under Runways |
68 1/2 (5' 8 1/2") |
| Height Of Columns |
83" (7' 11") |
| Overall Width (Without Motor) |
109 5/8" (9' 1 5/8") |
| Overall Width (With Motor) |
117 1/2" (9' 9 1/2") |
| Overall Length With Approach Ramp |
205 3/8" (17' 1 3/8") |
| Approach Ramp |
35" (2' 11") |
| Runway Width |
21 1/2" (w/ Rails) or 18 3/4" (Driving Surface) |
| Runway Length |
166 3/4" (13' 10 3/4") |
| Runway Thickness |
4 3/4" |
| Width Between Runways |
37 1/4" (3' 1 1/4") |
| Width Between Runway Rails |
34 3/8" (2' 10 3/8") |
| Outside Runway To Outside Runway |
74 3/4" (6' 2 3/4") |
| Clearance Between Columns |
95 1/2" (7' 11 1/2") |
| Length Between Columns |
156" (13') |
| Maximum Wheel Base |
154" (12' 10") |
| Drive Thru (Outside Of Tire To Outside Of Tire) |
82" (6' 10") |
| Motor/Electrical Requirement |
110 Volt, 30 AMP BREAKER REQUIRED |
| Shipping Weight |
1,965 lb. |
DocumentsAtlas 408SL Manual
Atlas 408SL Cylinder Bleeding Procedure (Do this immediately after installation)
