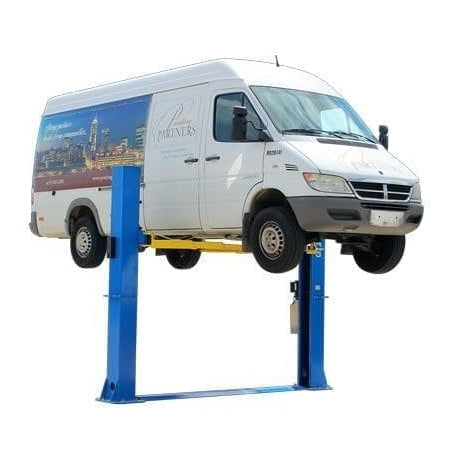

Atlas BP10000X 10,000 lb Baseplate 2 Post Lift

Details & Specifications

Based on your interests, we’ve picked a few things we think you’ll love

Capacity	10,000 LB.
Overall Height	111 7/8" (9’ 3 7/8")
Overall Floor Width	139 1/8" (11’ 7 1/8")
Outside Column to Outside Column	134 1/2" (11’ 2 1/2")
Maximum Lift Height (Without Adapters)	77 3/8"
Maximum Lift Height (With Adapters)	86 3/8"
Minimum Arm Height	4"
Inside Column	112 1/4” (9’ 4 1/4”)
Drive Thru	101 1/4” (8’ 5 1/4”)
Column Size	9 1/2" x 11"
Column Thickness of Steel	6mm
Base Of Lift	17 1/2" x 21 1/2"
Motor/Electrical Requirement	220 volt single (1) phase.A 30 amp breaker is recommended
Oil Requirement	3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight	1,640 LBS.
Adapter Heights	4 Each 2”, 3”, 6”
Arm Hole/Adapter Peg Size	1.5”
