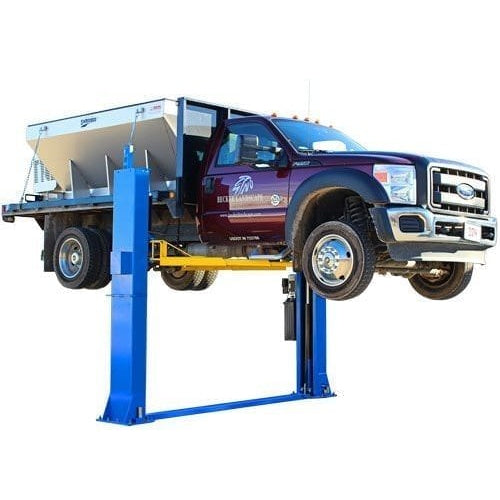

Atlas BP12000X 12,000 lb Baseplate 2 Post Lift

Details & Specifications

Based on your interests, we’ve picked a few things we think you’ll love

Capacity	12,000 LB.
Overall Height	122 1/2" (10’ 2 1/2")
Overall Floor Width	149 3/8" (12’ 5 3/8") or 154 1/2’’ (12’ 10 1/2’’)
Outside Column to Outside Column	135 7/8" (11’ 3 7/8") or 141 1/4" (11’ 9 1/4’’)
Maximum Lift Height (Without Adapters)	77 1/2"
Maximum Lift Height (With Adapters)	88 1/2"
Minimum Arm Height	4"
Inside Column	118 1/8’’ (9’ 10 1/8’’) or 123 1/2" (10’ 3 1/2")
Drive Thru	103 5/8’’ (8’ 7 5/8’’) or 109’’ (9’ 1’’)
Column Size	8 3/4" x 14"
Column Thickness of Steel	6mm
Base Of Lift	18 1/2" x 21 1/2"
Motor/Electrical Requirement	220 volt single (1) phase. A 30 amp breaker is recommended
Oil Requirement	3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight	2,130 LBS.
Adapter Heights	4 Each 2’’, 3’’, 6’’
Arm Hole/Adapter Peg Size	1.5’’
