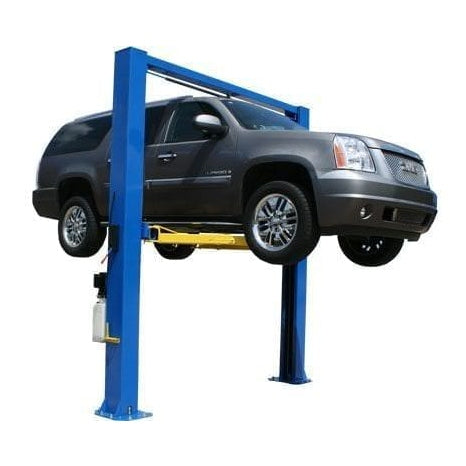

Atlas OHX10000X 10,000 lb Extra Tall 2-Post Lift

Regular price: $2,669.00
Sale price: $2,669.00
Regular price: $4,449.00

Payment protection
BBB accreditation badge
100% satisfaction

Details & Specifications

Description
The Atlas® OHX10000X two post commercial grade above ground lift is the perfect choice for those large commercial repair facilities or the “Mr. Homeowner” who demand the highest quality at the absolute best price. The Atlas® OHX10X is a TRUE 10,000 lb. capacity two post lift that offers a great value to the customer. Due to the drive through width, arm length and arm style the Atlas® OHX10000X was engineered and manufactured to lift a wide range of vehicles, specifically longer wheel based vehicles such as a one-ton diesel dually. Extra lifting height and extra width between the columns allows the operator to work on varied sizes of vehicles and offers a “fudge factor” of about 6 inches when “driving through” to another part of the building or lifting the van or “adder truck”. If you are over 6′ 1″, the Atlas® OHX10X has longer cylinders which allow the vehicle to be “ifted” about 3 inches higher than many other lifts. The Atlas® OHX10X incorporates a single piece 12′ 7″ formed column and an extra-long carriage that provides maximum column and arm strength to lift and support a 10,000 lb. vehicle. The single piece columns require the customer to have a ceiling of at least 13 feet to stand the column.

Features

10,000 lb. Capacity
Commercial Grade
Extra Tall & Extra Wide
Overall height: 152″ (12′ 8″)
Symmetric arms
Automatic Arm Restraints
“Padded” Shut-Off Bar
Rubber Covers on Carriages
Single Point Lock Release
Dual Direct-Drive Cylinders
Powder Coat Finish
Free 12 Piece Truck Adapter Set
Mounting Hardware Included
Shipping Weight: 1,665 lbs
5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

Specifications

Capacity	10,000 LB.
Overall Height	152" (12’ 8”)
Overall Floor Width	144 3/8" (12’ 3/8")
Outside Column to Outside Column	136" (11’ 4")
Maximum Lift Height (Without Adapters)	74 3/4"
Maximum Lift Height (With Adapters)	85 3/4"
Minimum Arm Height	4 1/2"
Inside Column	118 1/4” (9’ 10 1/4”)
Drive Thru	106 7/8” (8’ 10 7/8”)
Column Size	9 1/8" x 11"
Column Thickness of Steel	5mm
Base Of Lift	18 1/2" x 21 1/2"
Motor/Electrical Requirement	220 volt single (1) phase. A 30 amp breaker is recommended
Oil Requirement	3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight	1,665 LBS.
Adapter Heights	4 Each 2”, 3”, 6”
Arm Hole/Adapter Peg Size	1.5”
