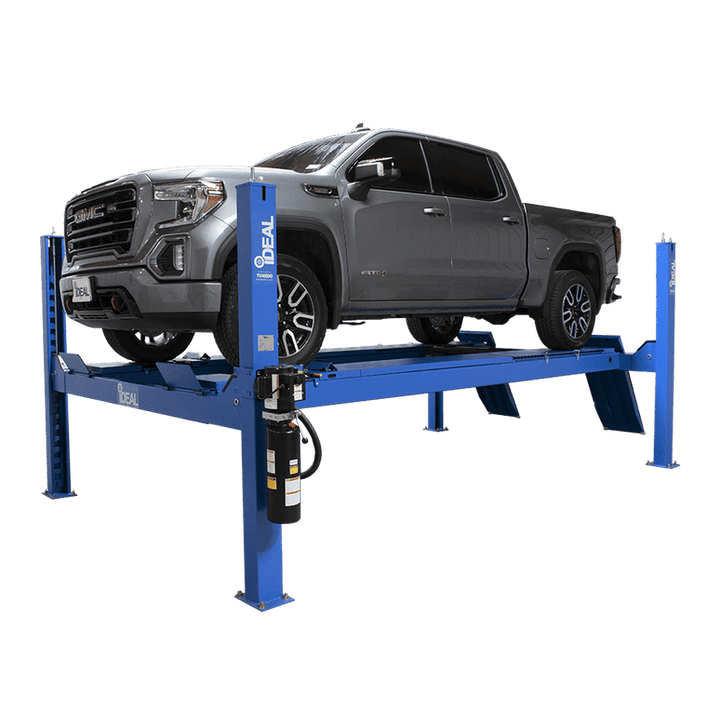

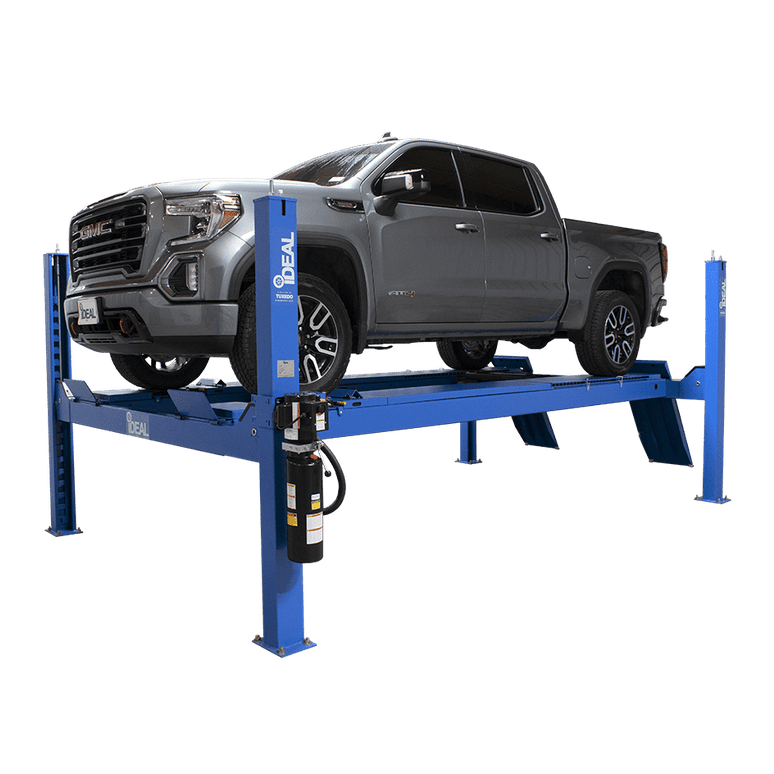

The iDEAL FP14KAC-X 14,000 lb. 4 Post Lift This lift is a high-performance closed-front, cable-pull vehicle lift designed for Cars, SUVs, Vans & Trucks. The FP14KAC-X Alignment Lift comes standard with full-width Rear Slip Plates, Turntables, Roll-Back Spacers & internal Air-Line Kit, while also applying the latest in design & safety features, such as narrow & wide runway mount positions, extended rise height, concealed hydraulic/mechanical cable lift system with slack cable safety devices and durable pulley & shaft design incorporating convenient grease fittings to the extended life of the lift. Easy lift operation is provided with a single-point pneumatic lock release & high-quality DURO power unit, while providing additional safety & protection with self-chocking ramps and included wheel stops. The iDEAL FP14KAC-X modular design also provides the flexibility to extend the runways for aligning or servicing longer vehicles! The standard powder coat finish, 20 wide runways, adjustable lock stops for easy runway leveling, and optional power unit mount positions complete the package for a premium, high-quality alignment lift, all at an unmatched value!
Features
- 14.000 LBS CAPACITY
- HIGH-PERFORMANCE COMMERCIAL ALIGNMENT LIFT
- DURABLE, HIGH-QUALITY CABLE LIFT SYSTEM
- EXTENDED RISE HEIGHT
- BOLT-ON RUNWAY ALIGNMENT KIT
- 166.7" MAX ALIGNMENT WHEELBASE (2 WHEEL)
- 157" MAX ALIGNMENT WHEELBASE (4 WHEEL)
- 182.5" MAX SERVICE WHEELBASE
- 18 LOCKING HEIGHT POSITIONS
- FULL WIDTH REAR WHEEL SLIP PLATES
- TWO TURNTABLE POSITIONS W/ SPACER COVERS
- 20* WIDE RUNWAYS
- NARROW & WIDE RUNWAY MOUNTING POSITIONS
- SINGLE POINT PNEUMATIC LOCK RELEASE
- FULLY ADJUSTABLE LOCK STOPS FOR EASY LEVELING
- SLACK CABLE SAFETY DEVICES
- SELF-CHOCKING APPROACH RAMPS W/ NYLON ROLLERS
- WHEEL CHOCKS (1PR)
- DURABLE POWDER COAT FINISH
Specifications
| Lift model |
FP14KAC-X |
| Capacity |
14000 lbs |
| Overall length w/ Ramp |
252-1/2" |
| Overall width (without power unit) |
131-7/8" |
| Overall width (with power unit) |
142" |
| Overall height |
92-1/2" |
| Max rise height |
79-1/2" |
| Min height |
9-7/8" |
| Width between posts |
116-1/4" |
| Length between posts |
196" |
| Width between runways |
43" or 46" |
| Width of runways |
20" |
| Max wheelbase |
182-1/2" |
| Max. align wheelbase (2 wheel) |
166-3/4" |
| Min / Max. Align wheelbase (4 wheel) |
103" / 157" |
| Ramp length |
44" |
| Max. Clearance under runway |
69-5/8" |
| Drive-thru clearance |
100" |
| Base plate |
10-1/2" x 9" |
| Power requirement |
220V - 20 Amp 1 PH |
| Ship weight |
3810 lbs |
| Min bay size |
16 x 25 |
