Professional-Grade Lifting Power for Your Shop

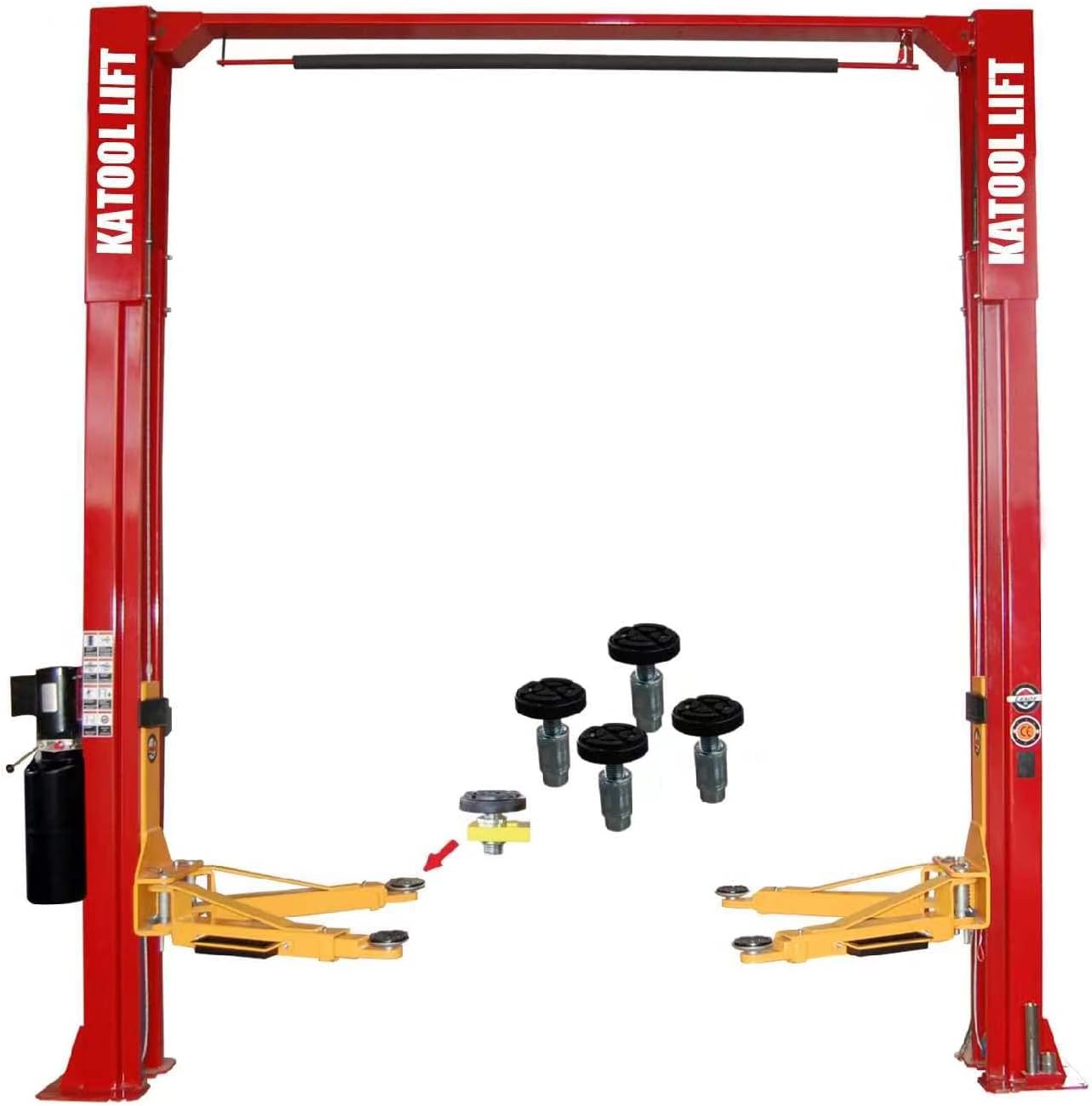

The Katool KT-M110 is a professional 11,000 lb capacity symmetric two-post automotive lift designed for shops and garages that demand reliable performance, safety, and value. CE Approved and Certified, this lift has been rigorously tested to meet 115% dynamic loading capacity standards and passed 150% static loading capacity testing, ensuring it can handle heavy-duty workloads with confidence.
Featuring a clear-floor design, the KT-M110 eliminates obstacles between the columns, giving you unobstructed access to work on vehicles from all angles. The symmetric two-stage arms provide exceptional adjustability, with a front and rear arm reach ranging from 30.75" minimum to 50.5" maximum, accommodating a wide variety of vehicle sizes and wheelbases. Whether you're working on compact cars or full-size trucks, this lift adapts to your needs.
Powered by dual hydraulic chain-drive cylinders, the lift delivers smooth, stable, and synchronized lifting every time. The system is driven by a top-level hydraulic motor (220V/60Hz/1PH, 2.2KW), with an optional 110V/60Hz/1PH configuration available for different power requirements. Raising vehicles to a maximum lifting height of 70.75" (1800mm), the KT-M110 gives you ample clearance for undercarriage work, inspections, and repairs.
Safety Features You Can Trust
Safety is at the core of the KT-M110's design. A manual safety release accessible from both sides of the lift allows operators to safely lower vehicles in the event of a power failure or emergency. The lift is also equipped with rubber pad door opening protection, preventing damage to vehicle doors during positioning and lifting.
An added overhead safety shutoff bar provides an extra layer of protection, automatically stopping the lift if it reaches maximum height. Feet-protection safety guardrails with an integrated tool box protect operators from accidental contact with moving parts, while keeping essential tools close at hand. These features combine to create a safer working environment for every lift operation.
The lift includes screw-on pad and extension support adapters in +30mm and +120mm sizes, allowing you to safely lift vehicles with different ground clearances and frame configurations. A complete set of extension support adapters is included with your purchase, giving you versatility right out of the box.
Key Advantages at a Glance
-
11,000 lbs lifting capacity – handles a wide range of passenger vehicles and light trucks
-
Clear-floor design – unobstructed workspace between columns for easy vehicle access
-
Dual hydraulic chain-drive cylinders – ensures smooth, synchronized lifting and lowering
-
CE Approved and Certified – tested to 115% dynamic and 150% static load capacity standards
-
Two-stage symmetric arms with adjustable reach from 30.75" to 50.5" – accommodates various wheelbases
-
Manual safety release from both sides – convenient emergency lowering access
-
Overhead safety shutoff bar and foot-protection guardrails – multiple layers of operator safety
-
Included extension support adapters (+30mm and +120mm) – ready to lift different vehicle types
Designed for Real-World Shops
The KT-M110 is built with the working technician in mind. With a drive-thru clearance of 94.5" (2400mm) and an inside column distance of 110.25" (2800mm), the lift provides generous space for positioning vehicles and moving around the workspace. The minimum height of just 4.25" (110mm) allows low-clearance vehicles to drive onto the lift without scraping, while the overall height of 141.25" (3587mm) fits comfortably in most standard garage bays.
Weighing in at a net weight of 1,367 lbs (620 kg), the lift is substantial enough to provide stability during operation, yet still manageable for installation. The overall width is 142.25" (3614mm), with an outside column measurement of 128" (3250mm), making it suitable for professional shop environments.
